| Subject: Awareness in iNotes using Sametime Proxy - not working |
 |
 |
 |
| Product Area: iNotes - Full mode |
 |
| Technical Area: New Features |
 |
| Platform: Windows |
 |
| Release: 8.5.2 |
 |
| Reproducible: Always |
 |
 |
 |
 |
I am having LTPA issues after following the "Lotus iNotes Sametime Proxy package" article on developerworks.
I have a Sametime 8.5.1 Proxy server running on RHEL and a Domino 8.5.2 server on Windows 2003 SE which is the LDAP and iNotes server. One Community server is running Sametime 8.5.1 on Domino 8.5.
I followed the instructions in the article but have a problem of awareness not working in iNotes, also I now cannot log into the stwebclient.
Firstly, the location for the stproxy directory in /opt/IBM/WebSphere/AppServer/optionalLibraries doesn't exist already although your article suggests that the directory needs to be copied and pasted over writing what's there. Should the stproxy directory already exist before now?
I created the stproxy directory and copied the jars to the new directory and continued with restarting the STProxyServer.

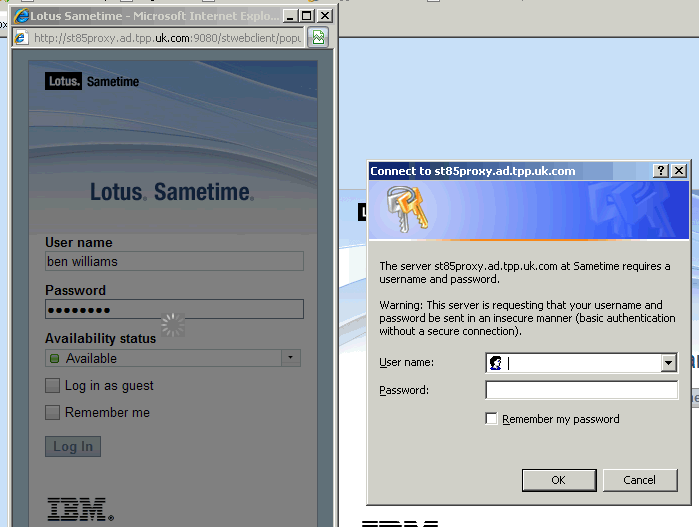

After the server started I tried to log in to the stwebclient and on entering my password I am faced with another prompt and I cannot log in.
Looking in the systemout.log I see that there are errors referring to LTPA.
[11/26/10 14:46:22:382 GMT] 00000024 ClusterManage I com.ibm.rtc.stproxy.cluster.ClusterManager serverLoggedIn CLFRX0006I: Sametime Proxy server is successfully connected to the Sametime community, server name is CN=ACME Sametime/OU=Servers/O=ACME, server id is 0 0ac176043
[11/26/10 14:46:22:384 GMT] 00000024 ClusterManage I com.ibm.rtc.stproxy.cluster.ClusterManager serverLoggedIn CLFRX0001I: local community is connected
[11/26/10 14:47:18:920 GMT] 00000026 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stwebclient] [/index.jsp]: Initialization successful.
[11/26/10 14:47:19:120 GMT] 00000027 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stwebclient] [/i18nStrings.jsp]: Initialization successful.
[11/26/10 14:47:20:878 GMT] 00000027 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stwebclient] [/popup.jsp]: Initialization successful.
[11/26/10 14:47:21:100 GMT] 00000027 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stbaseapi] [/iframeProxy.jsp]: Initialization successful.
[11/26/10 14:47:21:156 GMT] 00000027 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stwebclient] [ServerConfiguration]: Initialization successful.
[11/26/10 14:47:24:201 GMT] 00000027 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stbaseapi] [Interceptor]: Initialization successful.
[11/26/10 14:47:24:221 GMT] 00000028 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stwebclient] [Interceptor]: Initialization successful.
[11/26/10 14:47:24:530 GMT] 00000026 servlet I com.ibm.ws.webcontainer.servlet.ServletWrapper init SRVE0242I: [SametimeProxy] [/stbaseapi] [/hubClient.jsp]: Initialization successful.
[11/26/10 14:47:30:697 GMT] 00000026 TrustAssociat A SECJ0121I: Trust Association Init class com.ibm.ws.management.system.smgr.JobManagerTAI loaded successfully
[11/26/10 14:47:30:699 GMT] 00000026 TrustAssociat A SECJ0122I: Trust Association Init Interceptor signature: 1.0
[11/26/10 15:00:56:387 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.37860295509169931496.txt com.ibm.websphere.security.PasswordCheckFailedException 190
[11/26/10 15:00:56:397 GMT] 00000027 DMAdapter I com.ibm.ws.ffdc.impl.DMAdapter getAnalysisEngine FFDC1009I: Analysis Engine using data base: /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/properties/logbr/ffdc/adv/ffdcdb.xml
[11/26/10 15:00:56:415 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.3769052188655881354899.txt com.ibm.ws.security.ltpa.LTPAServerObject.authenticate 947
[11/26/10 15:00:56:416 GMT] 00000027 LTPAServerObj E SECJ0369E: Authentication failed when using LTPA. The exception is <null>.
[11/26/10 15:00:56:424 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4207306109142222307389.txt com.ibm.websphere.security.auth.WSLoginFailedException 186
[11/26/10 15:00:56:430 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4183717847918779241439.txt com.ibm.ws.security.server.lm.ltpaLoginModule.login 452
[11/26/10 15:00:56:436 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4324685017721672519370.txt com.ibm.ws.security.server.lm.wsMapDefaultInboundLoginModule.login 667
[11/26/10 15:00:56:445 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4427406922671250651580.txt com.ibm.ws.security.auth.JaasLoginHelper.jaas_login 602
[11/26/10 15:00:56:452 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4483069289212183396400.txt com.ibm.ws.security.auth.ContextManagerImpl.login 3703
[11/26/10 15:00:56:600 GMT] 00000027 FfdcProvider I com.ibm.ws.ffdc.impl.FfdcProvider logIncident FFDC1003I: FFDC Incident emitted on /opt/IBM/WebSphere/AppServer/profiles/st85proxySTPPNProfile1/logs/ffdc/STProxyServer_540e540e_10.11.26_15.00.56.4564729894721154308504.txt com.ibm.ws.security.web.WebAuthenticator.basicAuthenticate 1745
[11/26/10 15:01:08:743 GMT] 00000027 LTPAServerObj E SECJ0369E: Authentication failed when using LTPA. The exception is <null>.
I also see errors in iNotes.
Webpage error details
User Agent: Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.1; Trident/4.0; .NET CLR 2.0.50727; .NET CLR 3.0.4506.2152; .NET CLR 3.5.30729; InfoPath.2; .NET4.0C; .NET4.0E; AskTB5.6)
Timestamp: Fri, 26 Nov 2010 15:30:09 UTC
Message: Permission denied
Line: 26
Char: 14590
Code: 0
URI: http://acmeldap.ad.tpp.uk.com/iNotes/Forms85.nsf/iNotes/Proxy/?OpenDocument&Form=l_StdPageOperations&l=en&gz&CR&MX&TS=20100811T081528,46Z&charset=ISO-8859-1&PresetFields=s_FullcontactsView;1,s_FullListViewVirtual;1,s_contactsView;1,s_Base;1,s_FullInit;1,s_Sametimedojo;1,s_dojoboot;1,s_BHO;1
Message: 'window.parent.initHub' is null or not an object
Line: 33
Char: 4
Code: 0
URI: http://st85proxy.ad.tpp.uk.com:9080/stbaseapi/iframeProxy.jsp?isConnectClient=false&xDomain=tpp.uk.com
Message: Permission denied
Line: 8
Char: 2222
Code: 0
URI: http://acmeldap.ad.tpp.uk.com/mail/bwilliam.nsf/iNotes/Proxy/?OpenDocument&Form=l_ScriptFrame&l=en&gz&CR&MX&TS=20101028T000021,15Z&charset=ISO-8859-1&charset=ISO-8859-1&ua=ie
I extracted the files from my laptop (Windows) and copied them to my Linux server. I have also changed the directory and files permissions using chmod -R 755 just in case it may have been a permissions issue.
I can roll back the STProxyServer.ear to a copy I took prior to these changes and things work fine. Any help is appreciated.

Feedback number BWIS8BKJY3 created by ~Lisa Retumigenader on 11/26/2010
Status: Open
Comments:
 Awareness in iNotes using Sametime ... (~Kim Opniman 26.Nov.10)
 . . Configuration Issue (~Naomi Umhipipu... 29.Nov.10)
. . . . Any plans to release for 8.5.1? (~Andy Chuveluad... 30.Nov.10)
. . . . . . Sorry I mean 8.5.2. (~Andy Chuveluad... 30.Nov.10)
. . . . . . . . It is planned to be available with ... (~Autumn Refreez... 30.Nov.10)
. . . . . . . . . . Thanks for the update - will be goo... (~Andy Chuveluad... 30.Nov.10)
. . . . . . . . . . . . Still not working in IE8 after reve... (~Kim Opniman 3.Dec.10)
. . Can someone please post an update o... (~Julia Fezfanab... 28.Apr.11) |
| |
|
